Warranty 12 Years Grade A 72cells Photovoltaic Solar Panels 5BB 330W 335W 340W

Product Categories
Anhui Sunerise Energy Co., Ltd
Contact Now

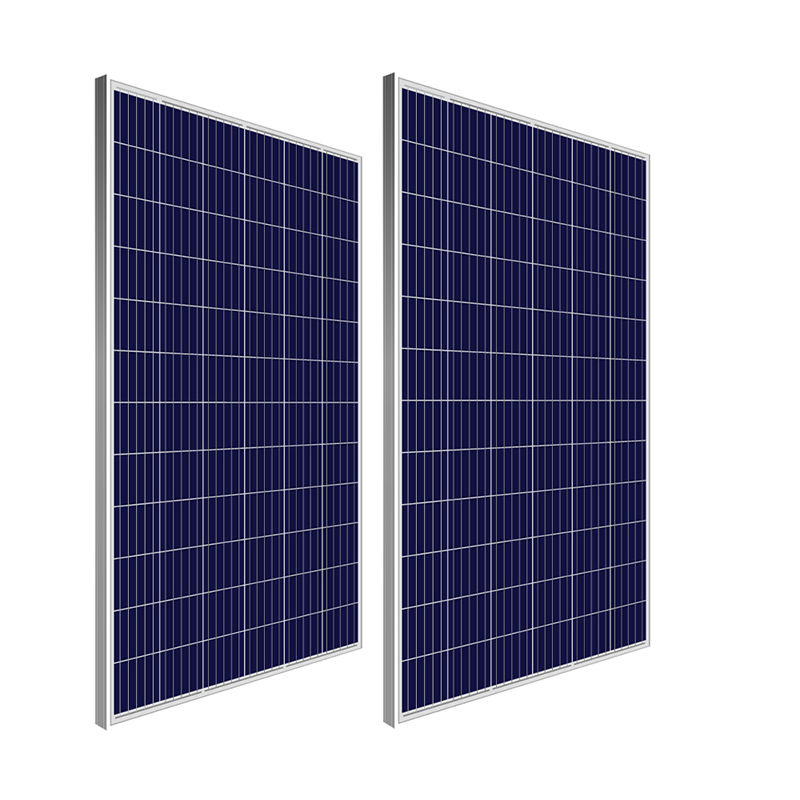

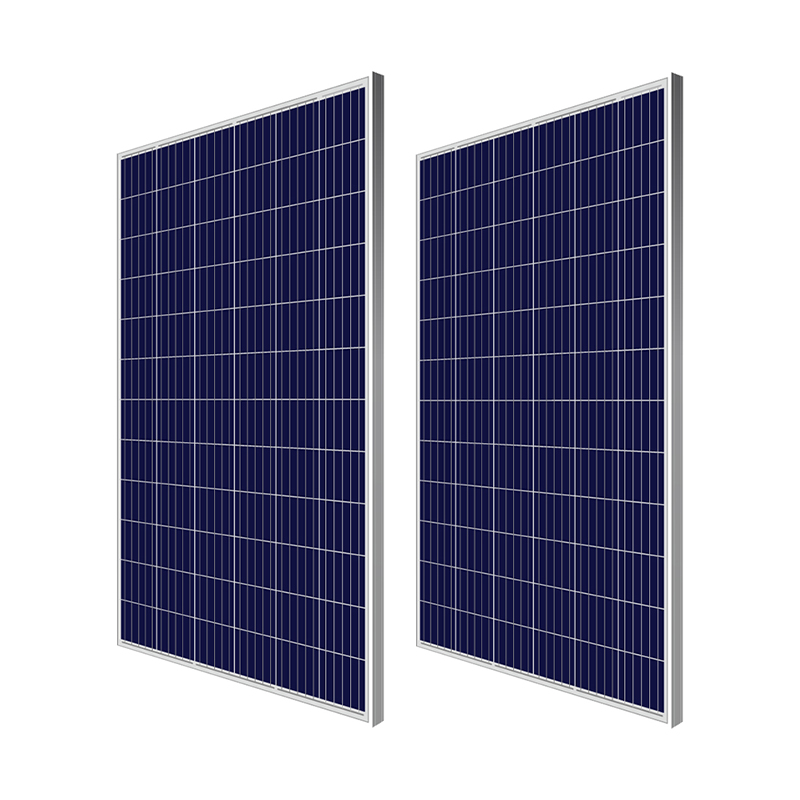

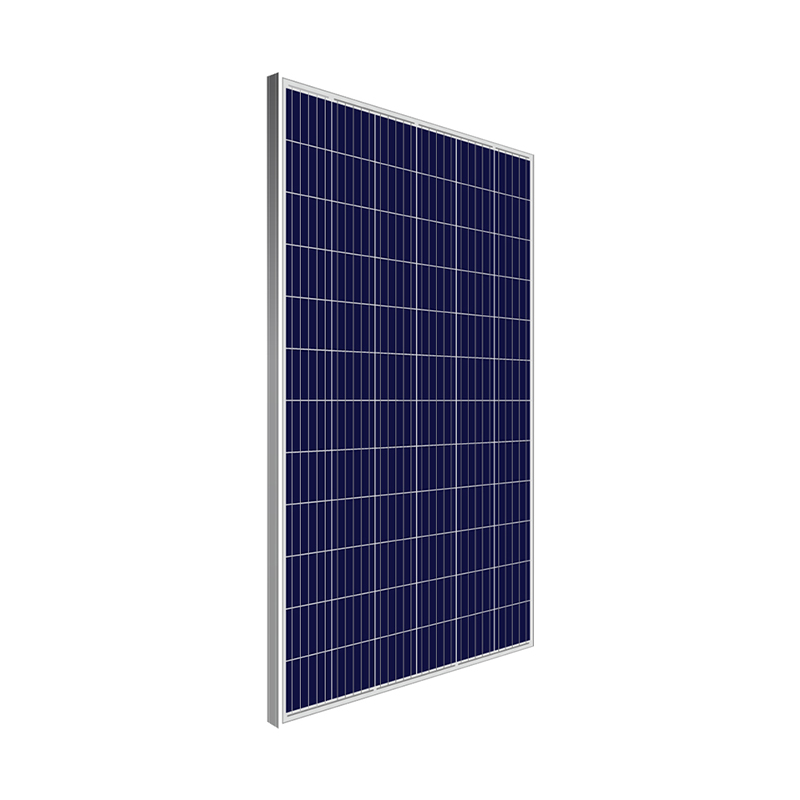

Warranty 12 Years Grade A 72cells Photovoltaic Solar Panels 5BB 330W 335W 340W

  • 1
  • 2
  • 3

Brand Name : SUNERISE

Model Number : JC335-72P

Certification : TUV,CQC,CE,IAF,CNAS,ISO etc

Place of Origin : Hefei,China

MOQ : 30pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 1MW,1Month

Delivery Time : 5-8 work days

Packaging Details : 30 pcs per pallet

Size : 1956*992*35mm

Module application level : Class A

Model : JC335-72P

Cell Type : Poly 156*156mm* 72 pcs

Power : 340w+0~5W

Voltage : 37.40V

Current : 8.96A

Efficiency : 17.52%

Contact Now

Warranty 12 Years Grade A Module Price Poly 335W 72cells Photovoltaic Solar Panels 5BB 330W 340W SOLAR PANELS



Warranty 12 Years Grade A Module Price Poly 340W 72cells Photovoltaic Solar Panels 5BB 320W 330W SOLAR PANELS



Polycrystalline Solar Panel

Warranty 12 Years Grade A Module Price Poly 340W 72cells Photovoltaic Solar Panels 5BB 320W 330W SOLAR PANELS


Features:

An aggregate of crystal particles, which has a single composition with a variety of different alignment directions. It is made by melting, casting and solidifying waste single crystal silicon material and metallurgical grade silicon material. Its manufacturing is simple and the cost is low. Generally, the photoelectric conversion efficiency of polycrystalline silicon solar cells is about 18%.

Maximum Power at STC [Pmax] 335W
Open Circuit Voltage [Voc] 45.80
Short Circuit Current [Isc] 9.54
Voltage at Maximum Power Point [Vm] 37.40
Current at Maximum Power Point [Im] 8.96
Power Tolerance 0~+5W
Module Efficiency 17.32
Maximum Power at NOCT [Pmax] 243.37
Open Circuit Voltage [Voc] 42.80
Short Circuit Current [Isc] 7.49
Voltage at Maximum Power Point [Vm] 34.46
Current at Maximum Power Point [Im] 7.07
Values at Standard Test Conditions STC Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
NOCT Irradiance at 800W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s



Product details:

The output power of polycrystalline solar panels is strictly controlled at ±3% to ensure that each container has a positive tolerance. Its components have been tested by internationally renowned laboratories to ensure the accuracy of the output rate.

In the module production process, the advanced technology of screwless built-in angle key connection is applied, which is tightly sealed, has high mechanical strength, and is encapsulated with high light transmittance tempered glass and sealed waterproof junction box to ensure the safe use of modules and guarantee these photovoltaic modules During 10 years of use, the output power is more than 90%; during 25 years of use, the output power is more than 80%.

Warranty 12 Years Grade A 72cells Photovoltaic Solar Panels 5BB 330W 335W 340WWarranty 12 Years Grade A 72cells Photovoltaic Solar Panels 5BB 330W 335W 340WWarranty 12 Years Grade A 72cells Photovoltaic Solar Panels 5BB 330W 335W 340W

FAQ

1.Q:Do you have your own factory?

A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.
2.Q:What kind of certification you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.

Our products could pass different labor testing according to different countries' requirements.

3.Q:Where we can use the system?

A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.

4.Q:How about your warranty?

A: We provide 1.5 and 3 years warranty for different products and whole life technical support.

5.Q:Competitive Price

A:All of our products are produced by our own factory. So the price is very copetitive.

6.Q:How to do the installation?

A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.

7.Q:24-hours online service

A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
