Mono Poly 120 Watt Monocrystalline Solar Panel 450w Waterproof IP68

Product Categories
Anhui Sunerise Energy Co., Ltd
Contact Now

Mono Poly 120 Watt Monocrystalline Solar Panel 450w Waterproof IP68

Brand Name : SUNERISE

Model Number : JC450-144M

Certification : TUV,CQC,CE,IAF,CNAS,ISO etc

Place of Origin : Hefei,China

MOQ : 31pcs

Price : $0.22/watt-$0.24/watt

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 1MW,1Month

Delivery Time : 7 days

Packaging Details : 31pcs/pallet, packed in cartons

Cell Type : MONO 166*83mm* 144pcs

Voltage : 42.1V

Current : 10.69A

Efficiency : 20.7%

Dimension : 2094*1038*35mm

Quantity Of 20GP : 310PCS

Quantity Of 40HQ : 726PCS

Grade : A

Contact Now

Competitive price mono and poly 120 325 410 450 watt polycrystalline and monocrystalline solar panels 450w Solar Panel


Monocrystalline Solar Panel

Competitive price mono and poly 120 325 410 450 watt polycrystalline and monocrystalline solar panels 450w Solar Panel


Features:

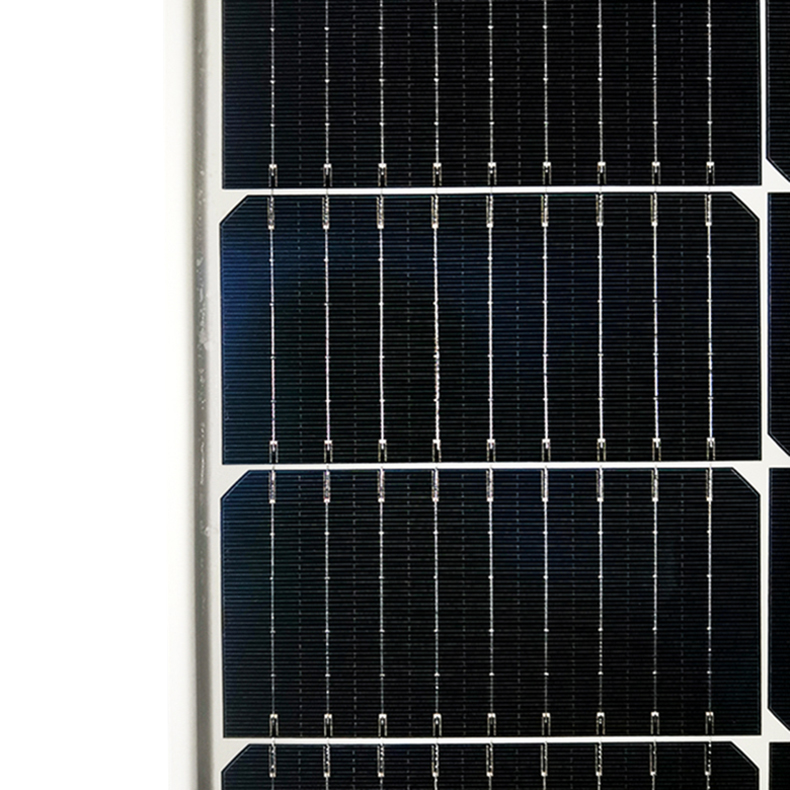

1) The cell is divided into two, the main grid current is halved, and the current loss of the whole module is reduced to about 1/4 of the original, and the output power is about 5-10W higher than the same version of the whole cell module;
2) The hot spot temperature of the half-cell battery module is about 25℃ lower than the temperature of the same version of the whole battery module, which can effectively reduce the hot spot effect of the module;
3) The half-cell battery module meets the design requirements of 1500V system voltage, which can reduce the system-side cost by about 10%;
4) In case of obstruction and dust and snow accumulation on the lower edge, it can effectively reduce the loss of power generation caused by obstruction;
5) Reduce the first year and average light-induced attenuation
6) PIDFree.

Maximum Power at STC [Pmax] 450W
Open Circuit Voltage [Voc] 50V
Short Circuit Current [Isc] 11.47A
Voltage at Maximum Power Point [Vm] 41.4V
Current at Maximum Power Point [Im] 10.97A
Power Tolerance 0~+5W
Module Efficiency 20.7%
Maximum Power at NOCT [Pmax] 333.6
Open Circuit Voltage [Voc] 42.7
Short Circuit Current [Isc] 8.73
Voltage at Maximum Power Point [Vm] 38.3
Current at Maximum Power Point [Im] 8.73
Values at Standard Test Conditions STC Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃
NOCT Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s



Model : JC450-144M
Cell Type : MONO 166*83mm*144pcs
Power : 450W+ 0~5W
Voltage : 42.1V
Current : 10.69A
Efficiency : 20.7%
Dimension : 2094*1038*35mm
Weight : 24kg/pc
Waterproof Grade : IP68
Fireproof Grade : Class C
Package Method : 30 pcs/ pallet
Package size : 2110*1130*1180mm
Package weight : 695Kg
Quantity Of Full Load in 20’ Container : 310pcs
Quantity Of Full Load in 40’ Container : 682/726
Technique Warranty : 12 years
Generation Warranty : 25 years
OEM/ODM : Accept
MOQ : one pallet



Manufacturing Technique

Mono Poly 120 Watt Monocrystalline Solar Panel 450w Waterproof IP68                      Mono Poly 120 Watt Monocrystalline Solar Panel 450w Waterproof IP68Mono Poly 120 Watt Monocrystalline Solar Panel 450w Waterproof IP68Mono Poly 120 Watt Monocrystalline Solar Panel 450w Waterproof IP68

FAQ
1.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.
2.Q:What kind of certification you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.
Our products could pass different labor testing according to different countries' requirements.
3.Q:Where we can use the system?
A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.
4.Q:How about your warranty?
A: We provide 1.5 and 3 years warranty for different products and whole life technical support.
5.Q:Competitive Price
A:All of our products are produced by our own factory. So the price is very copetitive.
6.Q:How to do the installation?
A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
7.Q:24-hours online service
A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
