High Quality Efficiency 270 Watt 60 Cells Polycrystalline Photovoltaic Solar Panel 18KG
Polycrystalline Solar Panel
High Quality Efficiency 270 Watt 60 Cells Polycrystalline Photovoltaic Solar Panel 18KG
Structural parameters :
1. High transmittance low iron tempered glass with enhanced stiffness and impact resistance.
2. Strictly quality control ensure the stability and reliability .
3. High cell efficiency with quality silicon materials for long term output stability and reliability.
4. Excellent performance in harsh weather.
5. With advanced encapsulatiing material,laminated in totally automatically machine by experienced technician.
| Maximum Power at STC [Pmax] | 270 |
| Open Circuit Voltage [Voc] | 37.90 |
| Short Circuit Current [Isc] | 9.32 |
| Voltage at Maximum Power Point [Vm] | 30.83 |
| Current at Maximum Power Point [Im] | 8.76 |
| Power Tolerance | 0~+5W |
| Module Efficiency | 16.60 |
| Maximum Power at NOCT [Pmax] | 196.19 |
| Open Circuit Voltage [Voc] | 34.89 |
| Short Circuit Current [Isc] | 7.57 |
| Voltage at Maximum Power Point [Vm] | 27.91 |
| Current at Maximum Power Point [Im] | 7.01 |
| Values at Standard Test Conditions STC | Air Mass AM1.5,irradiance 1000W/㎡ ,Cell Temperature 25℃ |
| NOCT | Irradiance at 8000W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s |

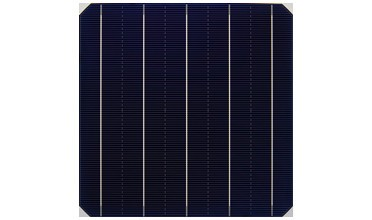

Solar Cell
--High Efficiency Pv Cells
--Anti PID
--Color sorting ensure consistent appearance on each module
--Service life is as long as 25 years
--Translucency of normal luminosity is increased by 2%
Frame
--Conventional frame
--Boost bearing capability and prolong service life
--Serrated-clip design tensile strength
--Seal-lip design glue injection

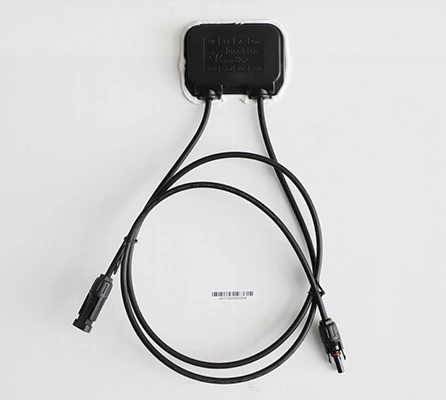

Junction box
--Long service life
--Heat dissipation
-- IP67 protection level
--Conventional standalone edition and engineering custom edition
--Quality diode ensures module running safety
CAUTION :
1. The Junction Box is mounted on the Back! So it's not suitable to be glued on the roof of the vehicle.
2. Do not have the positive and negative anodes of the alligator clip to touch or connect to each other, or it will cause short circuit and burning
FAQ
1.Q:Do you have your own factory?
A:Yes, we are professional manufacturer mainly in solar panel for many years. Our factory is located in Hefei, Anhui, China.
2.Q:What kind of certification you have?
A:ISO9001,ISO14001,ISO18001, TUV,CQC,CE,CEC,UL and so on.
Our products could pass different labor testing according to different countries' requirements.
3.Q:Where we can use the system?
A:You can use the system for home, for power station, for lighting system and so on, wnere the grid power is expensive.
4.Q:How about your warranty?
A: We provide 1.5 and 3 years warranty for different products and whole life technical support.
5.Q:Competitive Price
A:All of our products are produced by our own factory. So the price is very copetitive.
6.Q:How to do the installation?
A: This portable solar system installation is very simple, only need to connect solar panel with controller, and push ON/OFF button, then it will start to work.
7.Q:24-hours online service
A: Please feel free to contact us. Our sales team will provide you with 24 hours better pre-sale.
